उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| परीक्षण आईपी ग्रेड: | IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 | विन्यास: | ड्रिप बॉक्स, दोलन ट्यूब, जेट नली नलिका, टर्नटेबल |
|---|---|---|---|
| सामान्य मानक: | IEC60529, IEC60335-1, IEC60598-1 | टर्नटेबल गति: | 1-5आर/मिनट |
| नियंत्रण इकाइयाँ: | पीएलसी+टच स्क्रीन | कार्य -शक्ति: | 380V/50 हर्ट्ज |
| प्रमुखता देना: | IPX3-6 rainproof test chamber,380V electrical appliances test chamber,IEC60529 compliance test equipment |
||

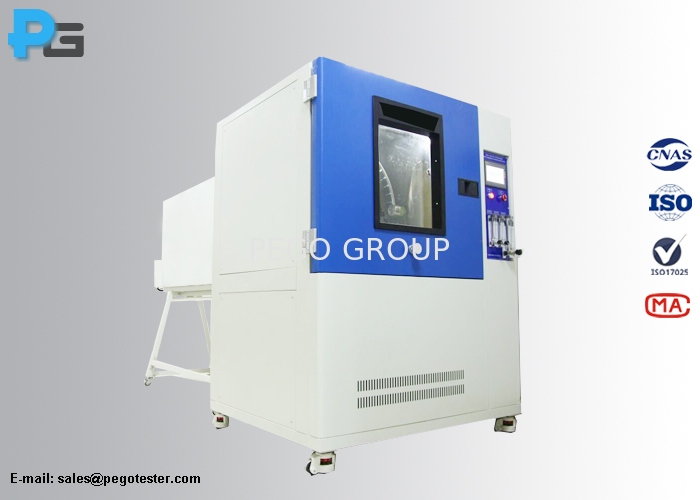

IEC60259 Raintight Test Chamber for Luminaire verifies protection levels IPX1 through IPX6 according to IEC60529 standards. This comprehensive testing system combines drip box, oscillating tube, and jet hose nozzles in a single unit to simulate various water exposure conditions.
| Parameter | Specification |
|---|---|
| Model | IPX16B |
| Control System | 7 inch touch screen + PLC |
| Inner Chamber Dimensions | 1300×1300×1450mm (W×D×H) |
| Outer Dimensions | 1750×3800×2150mm (L×D×H) |
| Turntable Specifications |
Ø600mm diameter 50kg capacity 1-5r/min speed 400-700mm adjustable height 0° or 15° tilt angle |
| IPX1-2 Drip Box |
800×800mm square drip board Φ0.4mm nozzle aperture 20×20mm nozzle spacing 1mm/min (IPX1) or 3mm/min (IPX2) delivery rate |
| IPX3-4 Oscillating Tube |
R600mm tube radius 1.8L/min±5% (IPX3) or 2.6L/min±5% (IPX4) delivery rate ±120° (IPX3) or ±350° (IPX4) tube angle 4s for 2×120° or 12s for 2×360° tube speed |
| IPX5-6 Jet Nozzles |
Φ6.3mm (IPX5) or Φ12.5mm (IPX6) nozzle aperture 12.5±0.625 L/min (IPX5) or 100±5 L/min (IPX6) delivery rate 2.5m nozzle-to-specimen distance Adjustable water pressure |
| Power Requirements |
380V/50Hz (3 phase 4 wires + ground) 220V/50Hz specimen power 3kW power consumption |
| Operating Conditions |
5℃~35℃ temperature ≤85% relative humidity 86kPa~106kPa pressure |
