उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| संदर्भ मानक: | आईईसी62262, आईईसी60068-2-75 | हड़ताली तत्व की सामग्री: | इस्पात |
|---|---|---|---|
| रिग की सामग्री: | एल्यूमीनियम मिश्र धातु | प्रभाव ऊर्जा: | आईके07 (2जे), आईके08 (5जे), आईके09 (10जे), आईके10 (20जे), आईके11(50जे) |
| रिलीज़ मोड: | मैनुअल रिलीज | प्रभाव कोण: | 0 ~ 90 डिग्री |

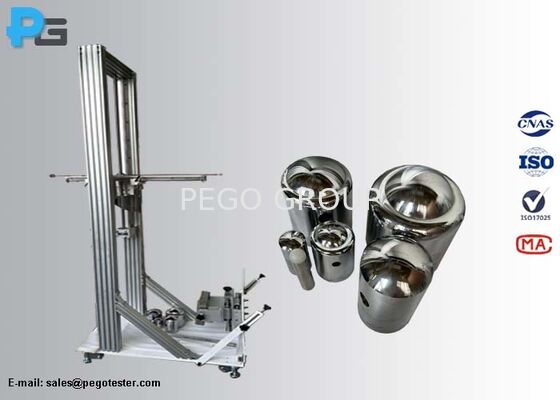

| प्रमुखता देना: | 0~90 Degree Impact Angle Pendulum Hammer,IK07 to IK11 Tests Impact Test Apparatus,Steel Striking Element Mechanical Impact Tester |
||
| Swing Pipe | Steel pipe 1 (Length: 1000mm, outer diameter: 15.9mm, thickness: 1.5mm) for energies exceeding 2J Steel pipe 2 (Length: 1000mm, outer diameter: 9.0mm, thickness: 0.5mm) for energies not exceeding 2J |
|---|---|
| Impact angle | 0~90° |
| Lifting stroke | 200-1200mm |
| Impact hammers | Striking elements: 2J for IK07 test, 5J for IK08 test, 10J for IK09 test, 20J for IK10 test, 50J for IK11 tests Material: steel |
| Equivalent mass of hammers | ≤1J: 0.2KG, IK07: 0.5KG, IK08: 1.7KG, IK09: 5KG, IK10: 5KG, IK11: 10KG |
| Hammer release method | Manual release |
| Mounting Fixtures | Flat mounting plate for IK07 to IK10 tests, adjustable angle 0-90°, equipped with M6 screw holes |
| Model (energy) | 2J | 5J | 10J | 20J | 50J |
|---|---|---|---|---|---|
| Equivalent mass/kg | 0.5 | 1.7 | 5 | 5 | 10 |
| Height of fall±1%/mm | 400 | 300 | 200 | 400 | 500 |
The equipment includes a dial to indicate the falling height. Simply pull the swing pipe to the corresponding height and release it.
The equipment includes a flat mounting fixture with M6 screw holes. Lighter samples can be placed on the mounting plate, which can be tilted 0-90°. For heavier or larger samples, they can be placed directly on the ground.
After the initial impact, grasp the striking element by hand to retain the hammer, being careful to avoid the arm to prevent distortion. While electronic brake devices are available, they carry a risk of swing arm deformation.
The equipment ships fully assembled and requires no installation service.
