| Normative standard: | BS1363-1 figure 1, BS1363-2 figure 1, BS1363-3 figure 1 | Application: | for checking the openings of the BS plugs and socket-outlets. |
|---|---|---|---|
| Diameter of the pin: | Φ1mm~Φ0.95mm | Material: | stainless steel (pin)+nylon (handle) |
| Thruster: | 0N, 5N |

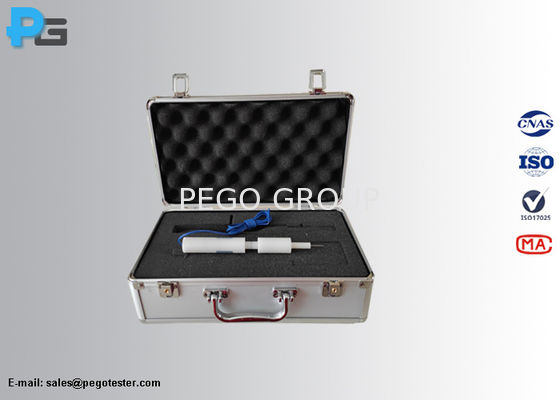

Test Pin with Diameter 1mm as Per BS1363-1 Figure 1
1. Introduction
The test pin is designed according to BS1363-1 figure 1 & clause 12.6.1, BS1363-2 figure 1 & clauses 9.2.1, 12.8.1, 13.7.1, 20.1.4, and BS1363-3 figure 1 & clauses 9.2.1, 12.8.1, 13.7.1, 20.1.4, and BS1363-5 figure 1 7 clauses 12.5.1.5, 12.5.2.2.2, for checking the openings of the BS plugs and socket-outlets.
2. Specification
|
Diameter of the pin |
Φ1mm~Φ0.95mm |
|
Material of pin |
Stainless steel |
|
Material of handle |
Insulating material |
|
Thruster |
0N, 5N |
