उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| वर्तमान का परीक्षण करें: | 0-50.0ए | ड्रॉप वोल्टेज माप सीमा: | 0-199.9mv |
|---|---|---|---|
| सामान्य मानक: | आईईसी60884-1, बीएस1363 | कार्यशील शक्ति (इनपुट): | 220 वी, 50/60 हर्ट्ज |

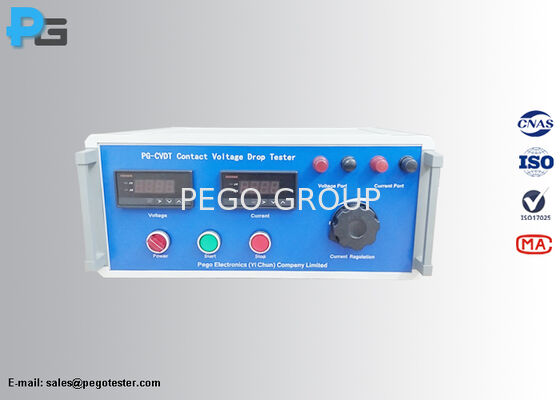

contact voltage drop tester is developed according to the requirements of IEC60884.1 and GB/T2099.1. The instrument has adjustable high current output terminal, micro voltage test terminal, intuitive reading, easy operation and other characteristics. It is used to test the voltage drop of automobile wiring harness terminals, the contact voltage drop of threadless terminals and the contact voltage drop of non-detachable power plugs after the bending test.
|
Test current |
AC 0-50.0A adjustable |
|
Drop voltage measurement range |
0-199.9mV |
|
Voltmeter accuracy |
±1.0%F.S±3digits |
|
Ammeter accuracy |
±1.0%F.S±2digits |
|
Working power (input) |
AC 220V±10%, 50-60Hz |
|
Working environment |
Temperature: 0-60℃ Humidity: 20-95%RH A place without violent shaking, impact, vibration and corrosive air |
